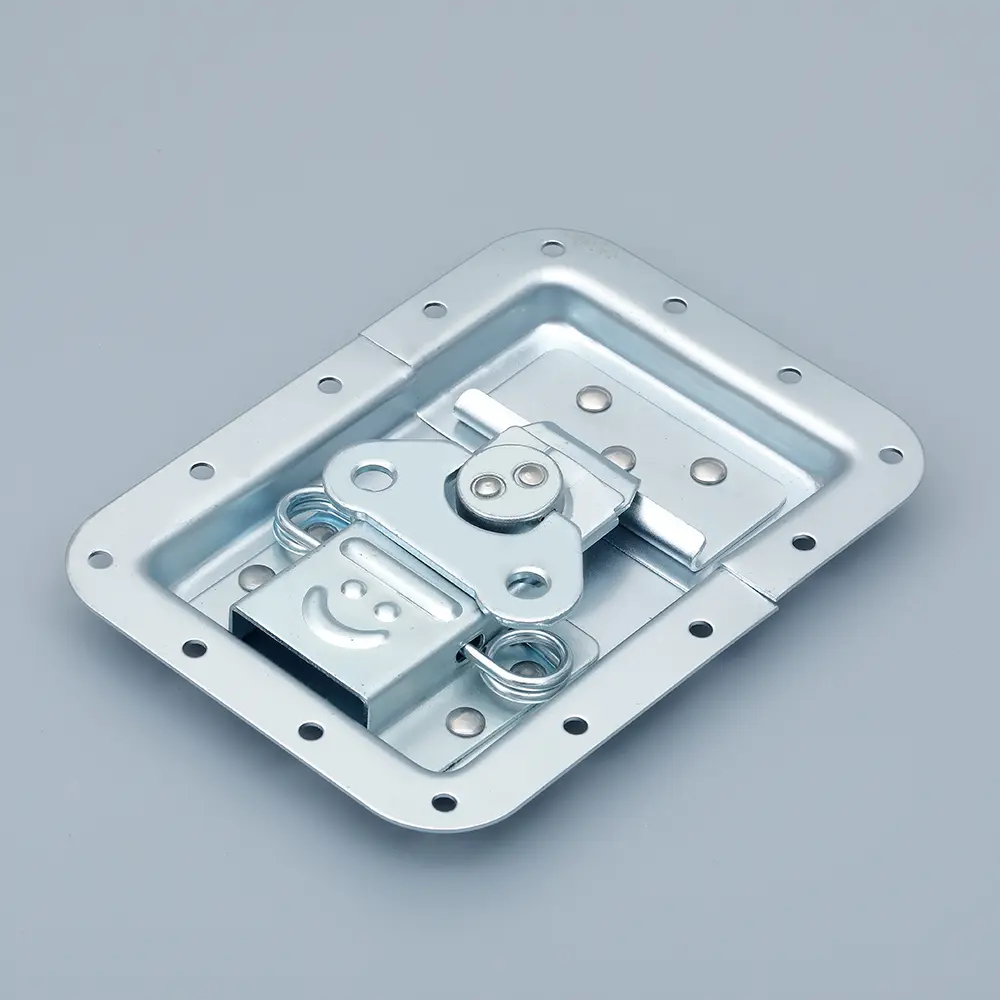

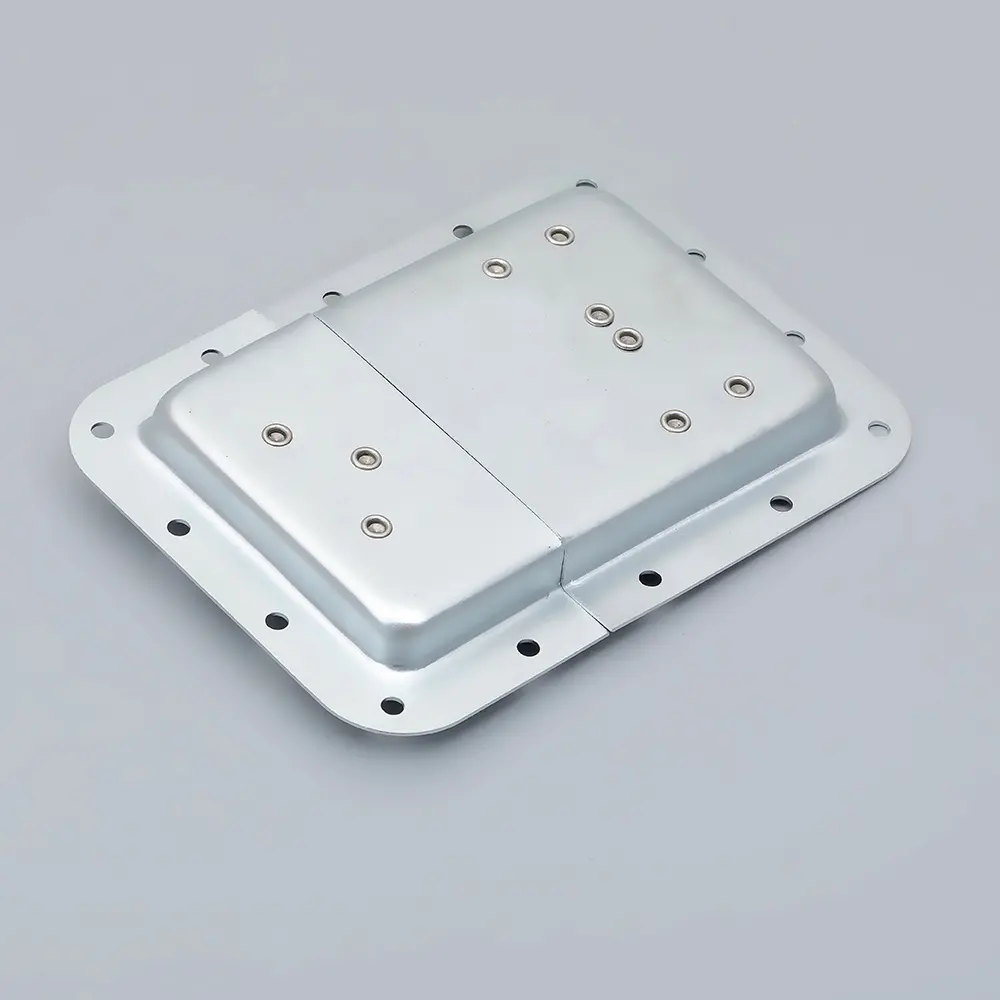

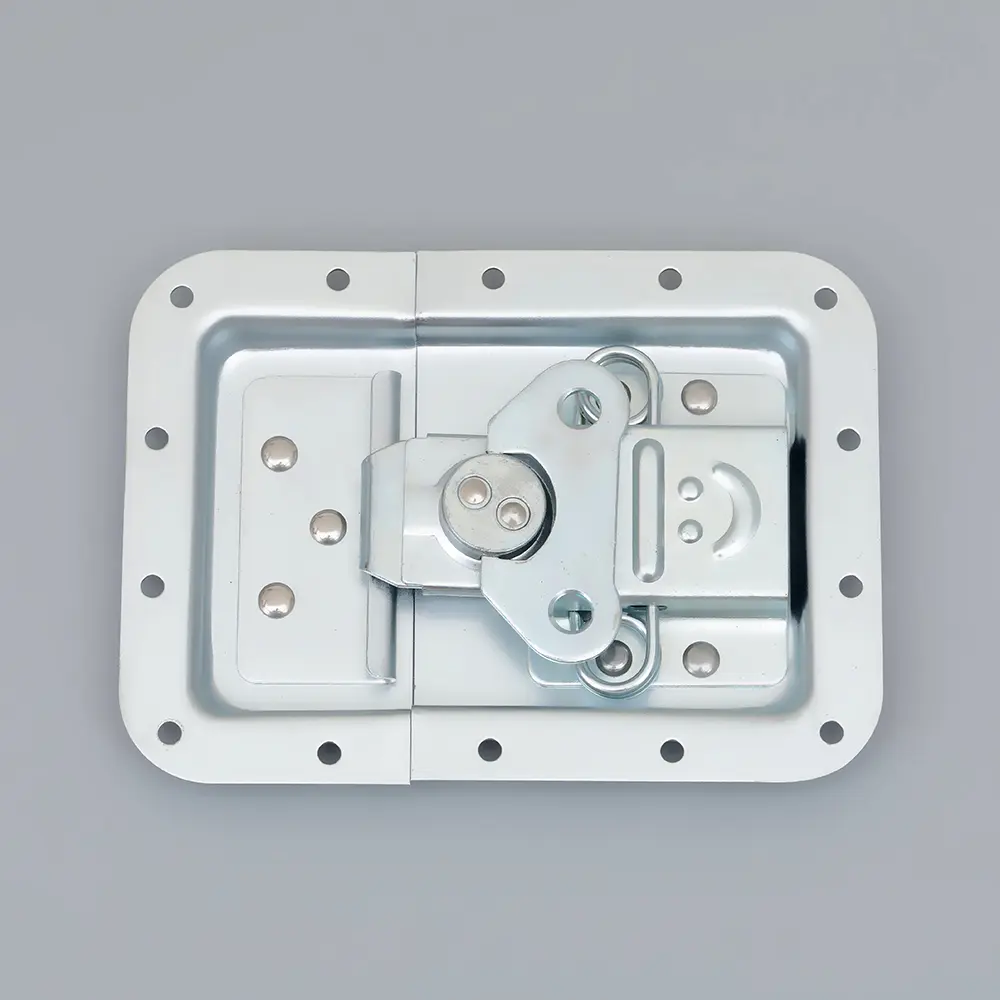

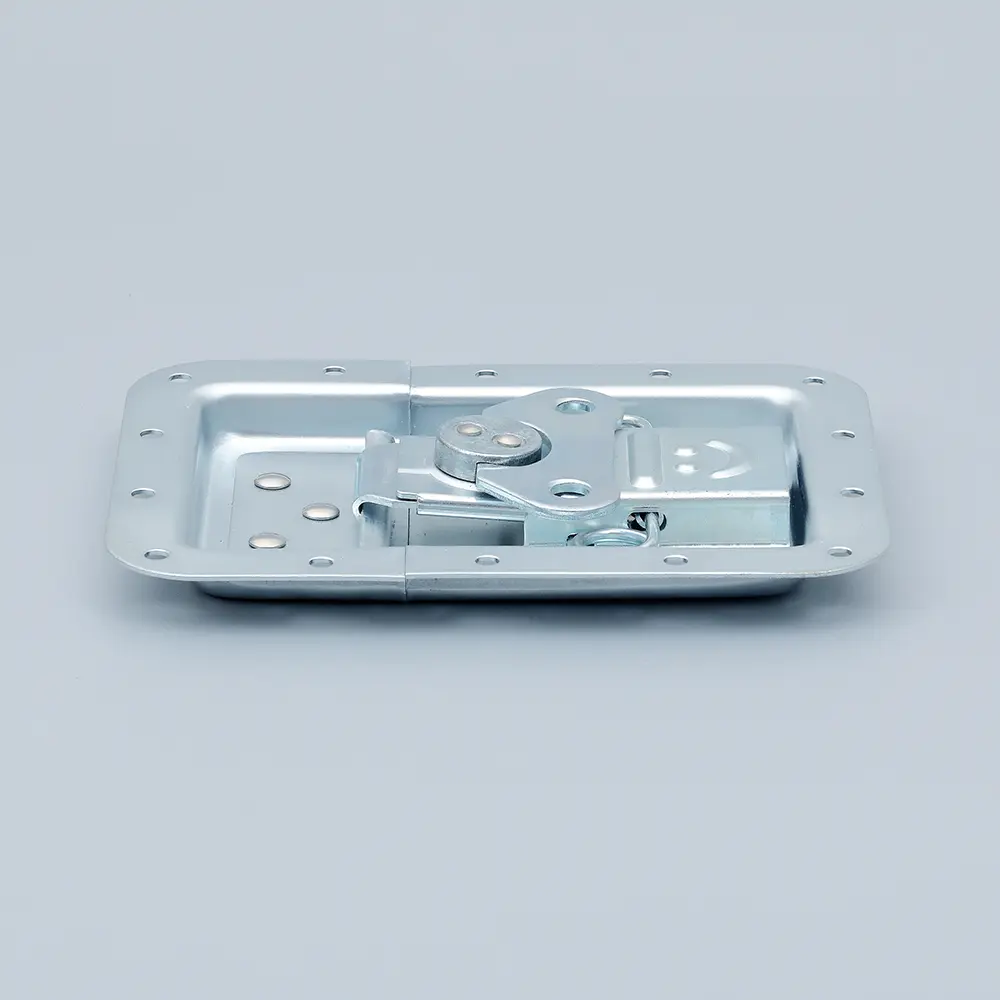

Large Flight case recessed lock with offset M917-C

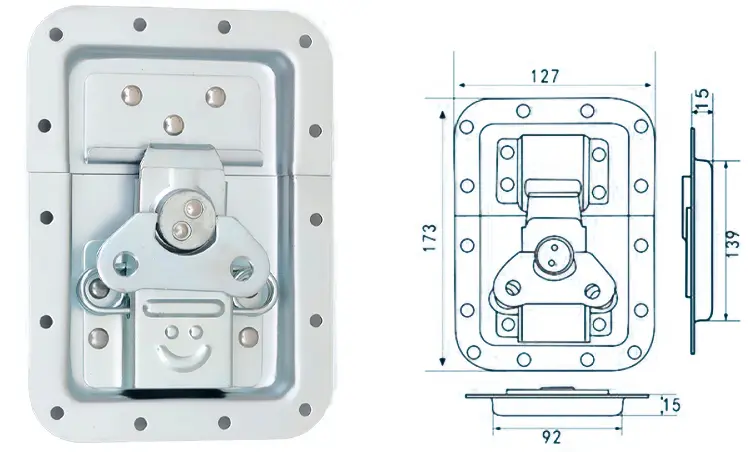

The large-size flight case locks also called road case lock mainly come in two sizes, 172*127MM and 127*157MM. The M917-C is 172*127MM, and it is also our most popular model with a large dish lock.

  • MODEL: M917-C
  • Materials Option: Mild Steel or Satinless steel 304
  • Surface Treatment: Chrome/zinc plated /Polished for stainless steel 304
  • Net Weight: Around 420 to 440 gram
  • Holding Capacity: 100KGS or 220LBS or 980N
Send mailWhatsapp INQUIRY NOW

M917-C

Product Description

Large Flight case recessed lock with offset M917-C (5)0wj

The large-size flight case locks also called road case lock mainly come in two sizes, 172*127MM and 127*157MM. The M917-C is 172*127MM, and it is also our most popular model with a large dish lock. This is a standard heavy-duty recessed twist latch designed for use with full-length extrusions. It consists of a two-piece dish assembly and requires additional cuts to the tongue and groove extrusions for installation, and is intended for use with our full-length extrusions.

This lock is meticulously crafted from 1.2mm thick cold-rolled steel, ensuring durability and robustness. It can also be fabricated from stainless steel 304, enhancing its corrosion resistance. The surface treatment can be customized to meet customer preferences or selected from our standard options, including chrome plating, zinc plating, or black powder coating, guaranteeing an visually appealing and protective finish.

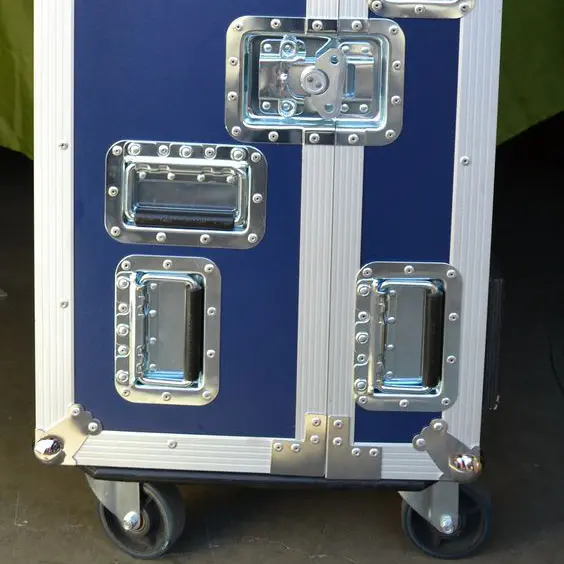

This accessory enjoys widespread application in various cases, including aviation cases, transport cases, military cases, and PVC cases. Its heavy-duty construction and sturdy design enable it to withstand substantial weight, ensuring the security and integrity of the contents within

Solution

Large Flight case recessed lock with offset M917-C (1)2na
Large Flight case recessed lock with offset M917-C (3)ipc
Large Flight case recessed lock with offset M917-C (2)jjk

PRODUCTION PROCESS

Material1al
01

Material

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Cutting2fm
02

Cutting

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Stampingqo9
03

Stamping

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Shapingm6r
04

Shaping

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Electric platingbzd
04

Electric plating

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail
Assemblingvrx
05

Assembling

2018-07-16
During the period of 51-55, the third phase of medicine and health ...
view detail

quality control

Quality inspection (1)wwu
01

Inspection for raw materials

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (2)0sj
01

finished product inspection

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (3)qh3
01

Neutral salt spray test

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail
Quality inspection (4)qmd
01

Bearing Capacity test

2018-07-16
With nectar and honey pouch Although I didn't bring a honey jar But there is a honey pouch in the belly of the bee Is specially used to hold nectar
view detail

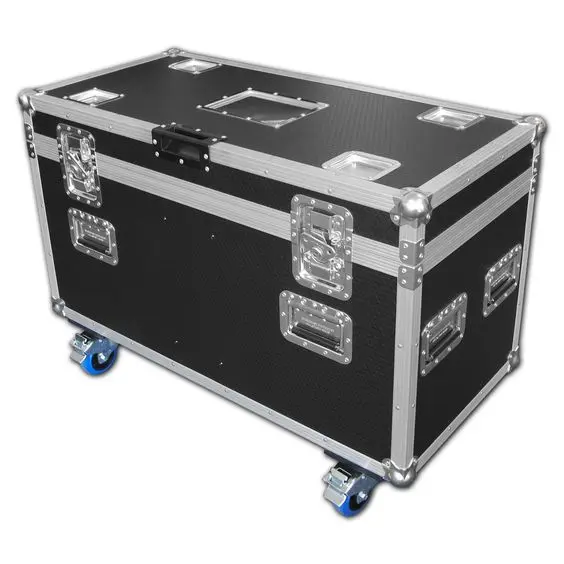

Introducing the M917-C Large Flight Case with Recessed Offset Lock, a state-of-the-art solution for transporting and protecting your valuable equipment during travel. Designed for professional use, this heavy-duty luggage offers top-notch security and durability, ensuring your gear arrives at your destination intact.

 The M917-C is constructed from high-quality materials, including impact-resistant ABS plastic and sturdy aluminum profiles. The case features reinforced corners and edges to provide superior protection against impacts and rough handling. Inside, customizable foam inserts allow you to get a custom fit for your device, ensuring everything stays in place during transport.

 One of the standout features of the M917-C is its recessed offset lock. This advanced locking system provides an extra layer of security, preventing unauthorized access to the contents of the box. The lock's offset design adds extra tamper resistance, giving you peace of mind knowing your device is always safe and secure.

 The M917-C's large size makes it suitable for a variety of devices, including audio/video equipment, cameras, lighting equipment, and more. The spacious interior provides enough room for a variety of items, allowing you to consolidate your gear into one easy-to-transport case. Whether you're a professional photographer, videographer, musician or technician, the M917-C provides the perfect solution for protecting your valuable equipment while on the road.

 In addition to its superior protection and safety features, the M917-C is designed with convenience in mind. The case features smooth-rolling wheels and a telescoping handle, making it easy to move through airports, venues, and other travel environments. Durable latches and hinges stand up to heavy use, ensuring the suitcase can handle the demands of frequent travel.

 Overall, the M917-C Large Flight Case with Recessed Offset Lock is a must-have for anyone who needs to transport equipment reliably and securely. With its top-notch construction, advanced locking system, and convenient design, this case gives professionals peace of mind on the go.
