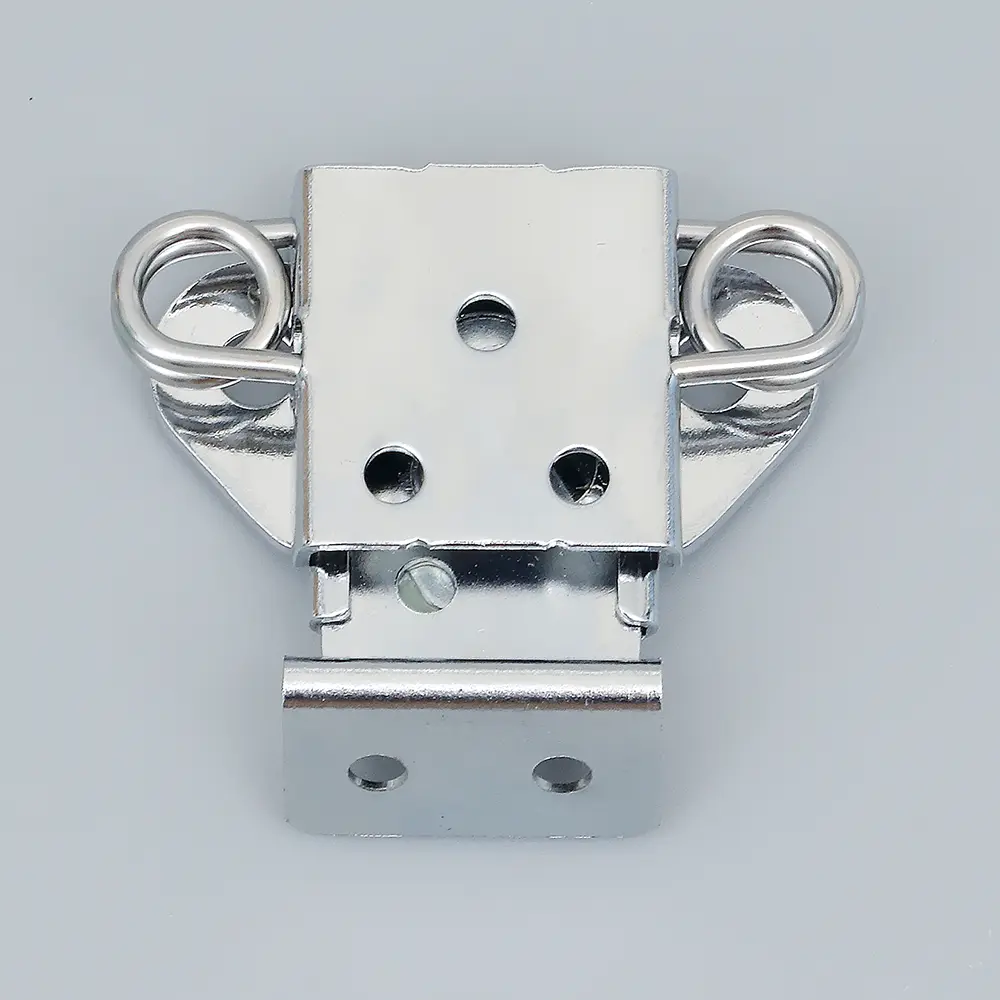

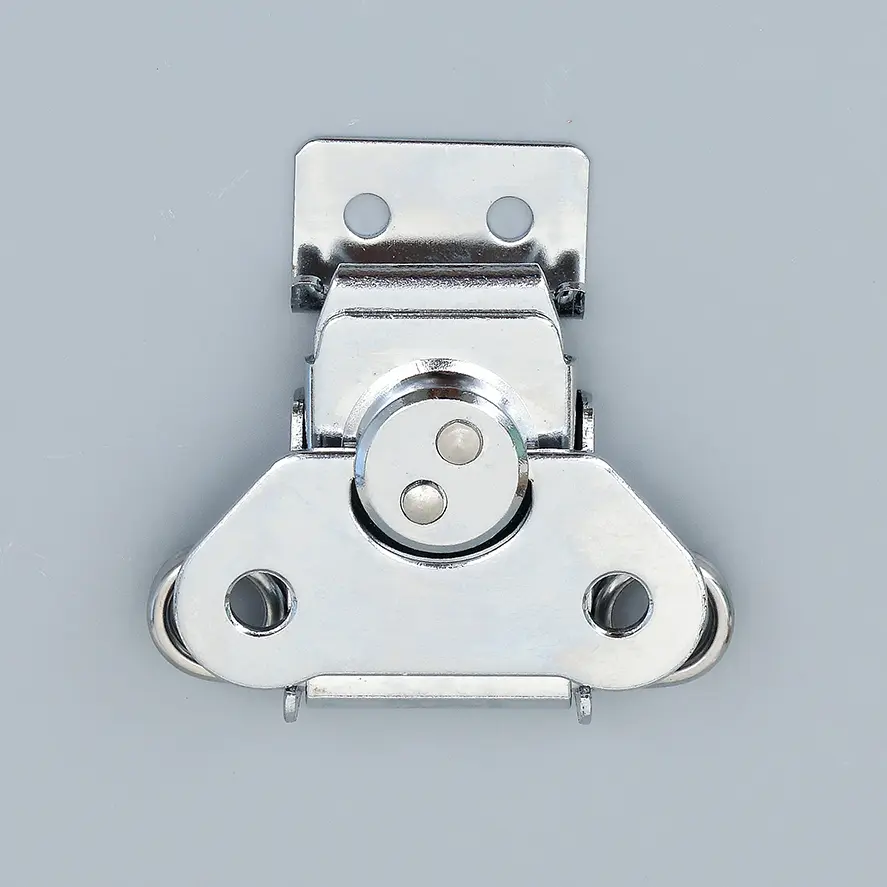

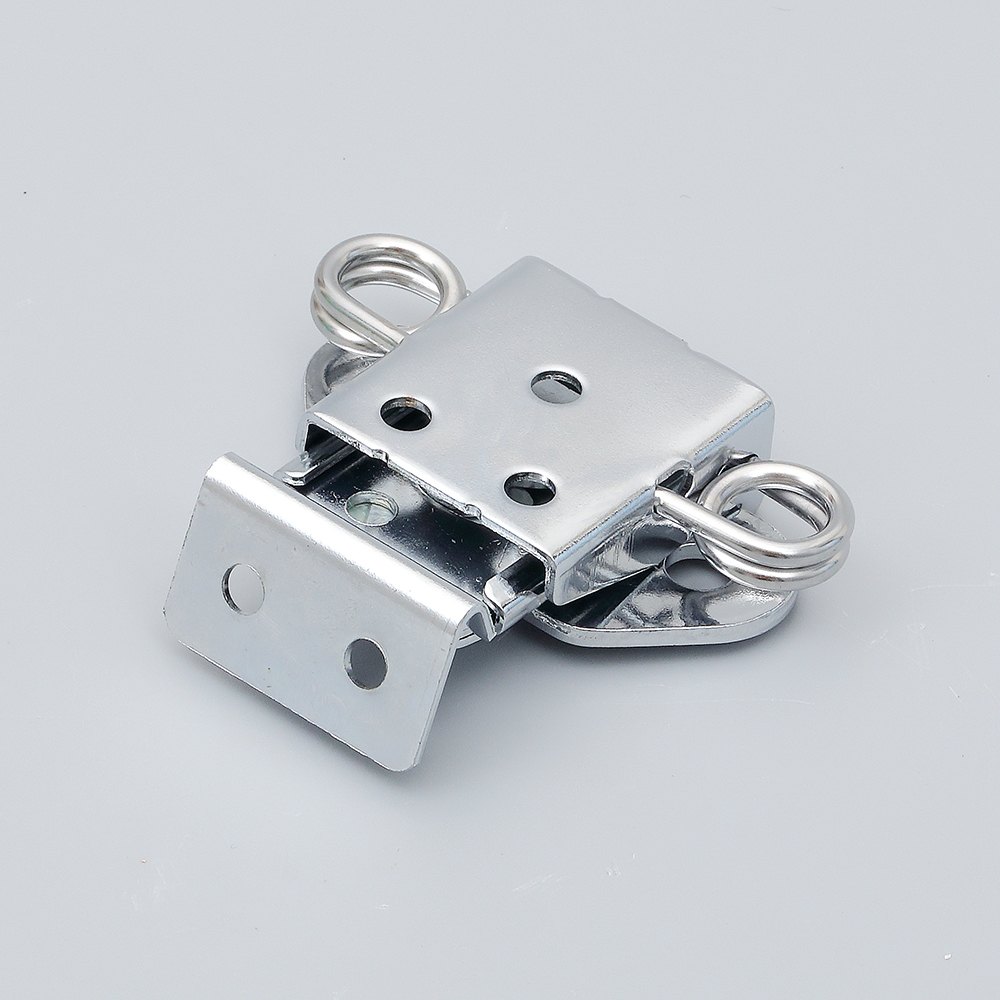

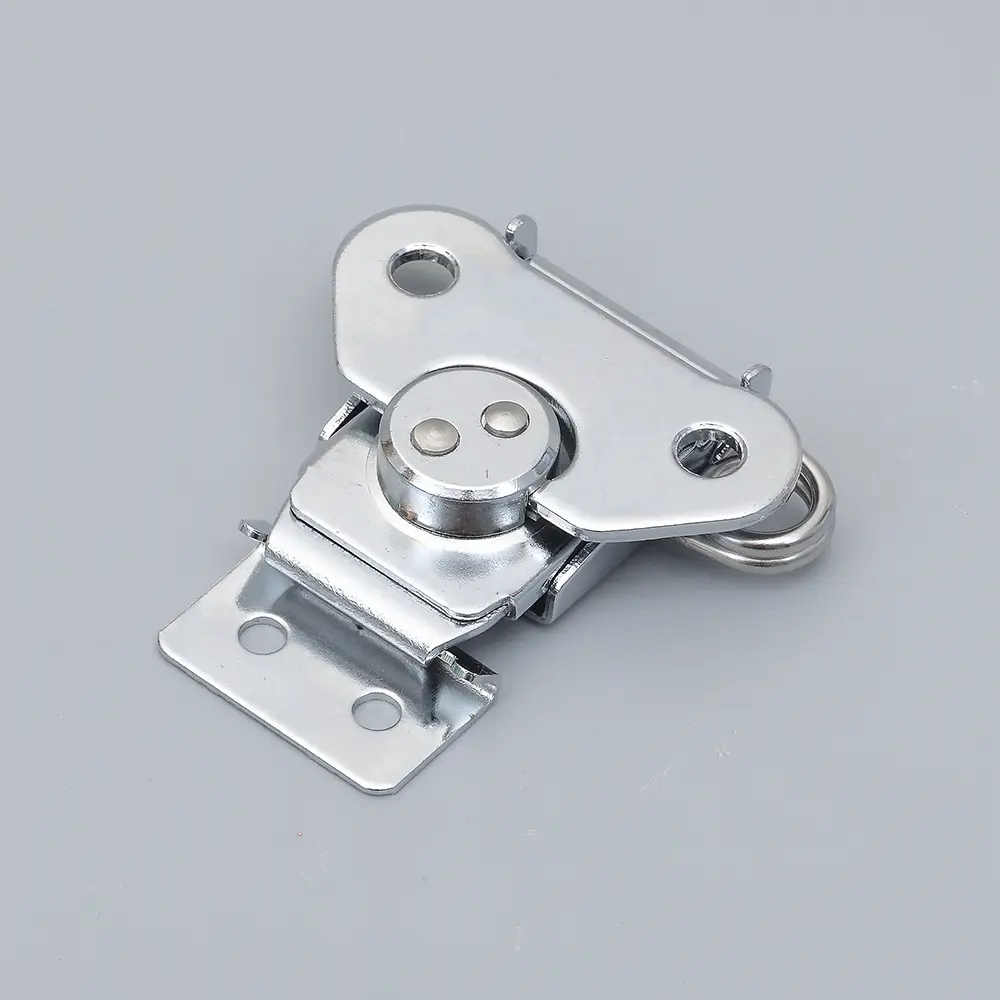

Road case butterfly latch lock M803

This medium-sized butterfly lock, also known as a road case latch, flight case latch, latch lock, spring latch, or surface-mount latch, belongs to our latch family series. It is commonly used on various types of boxes, including wooden boxes, aluminum boxes, flight cases, transport cases, and plastic boxes.

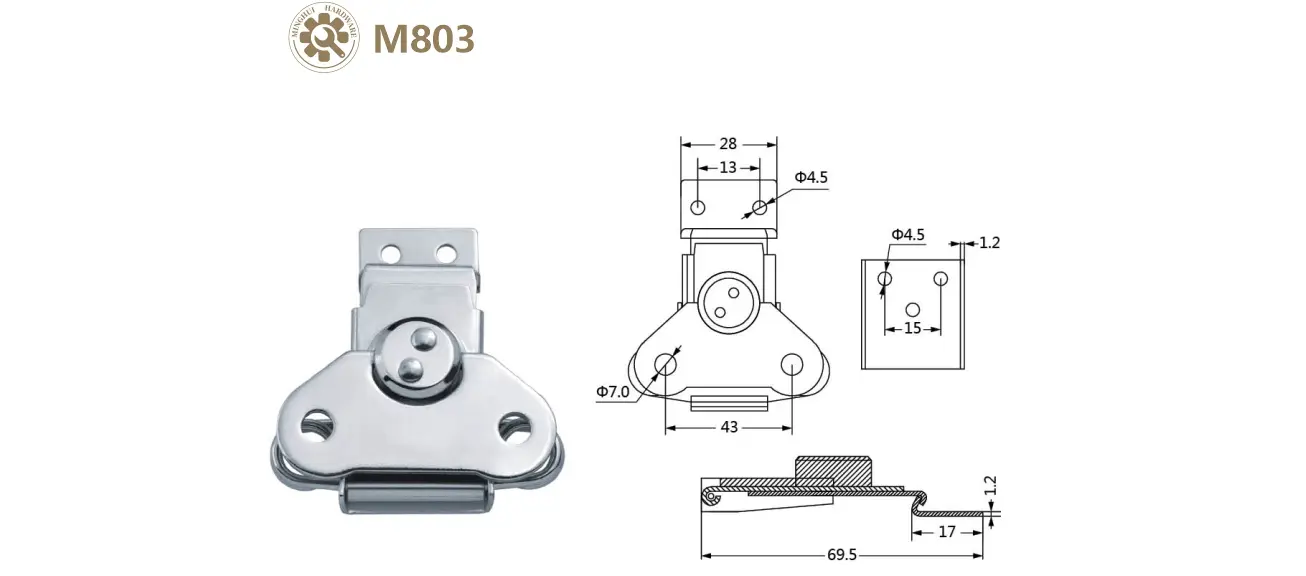

With a total length of 68mm and a width of 72mm, this latch comes with two optional hooks made of either 304 stainless steel or iron. The iron material is more cost-effective and durable, while the stainless steel option offers strong rust resistance and is suitable for outdoor use.

In addition to the standard version, we also offer a version with a hanging lock hole (M804), a smaller sized option (M806), and a larger one (M810). No matter which option you choose, we have a high-quality solution to meet your needs.

Whats a butterfly latch or a surface-mounted latch ?
A flight case butterfly lock or surface-mounted lock is a type of latch commonly used on flight cases, musical instrument cases, and other types of cases to secure the lid or door. It is called a "butterfly lock" because the latch mechanism resembles the wings of a butterfly when opened and closed.

The lock is mounted on the surface of the case and consists of a metal plate with a spring-loaded latch that engages with a striker plate on the other side of the case. The latch can be opened and closed with a turn of the key or by pressing a button or lever.

Surface-mounted locks are popular because they are easy to install and do not require any modifications to the case. They are also relatively inexpensive and provide a high level of security for the contents of the case.
