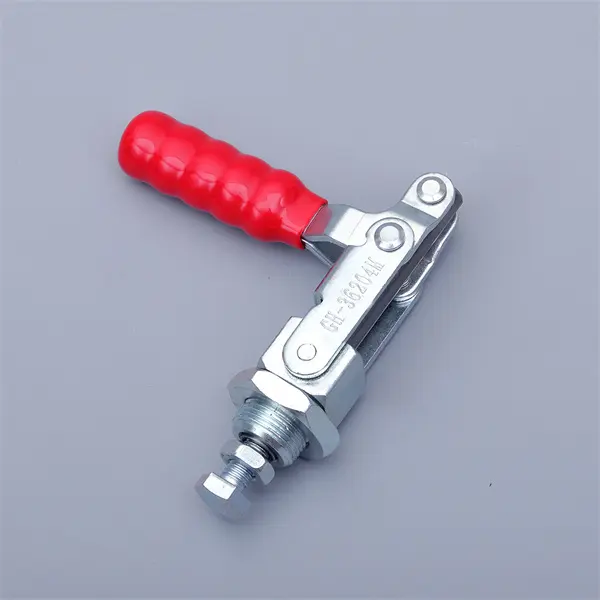

Side Push/Pull, Free Mounting Direction GH-36204

This product is called the Handle Opens Quick Release Push Pull Toggle Clamp, also known as a fixture clamp lock.

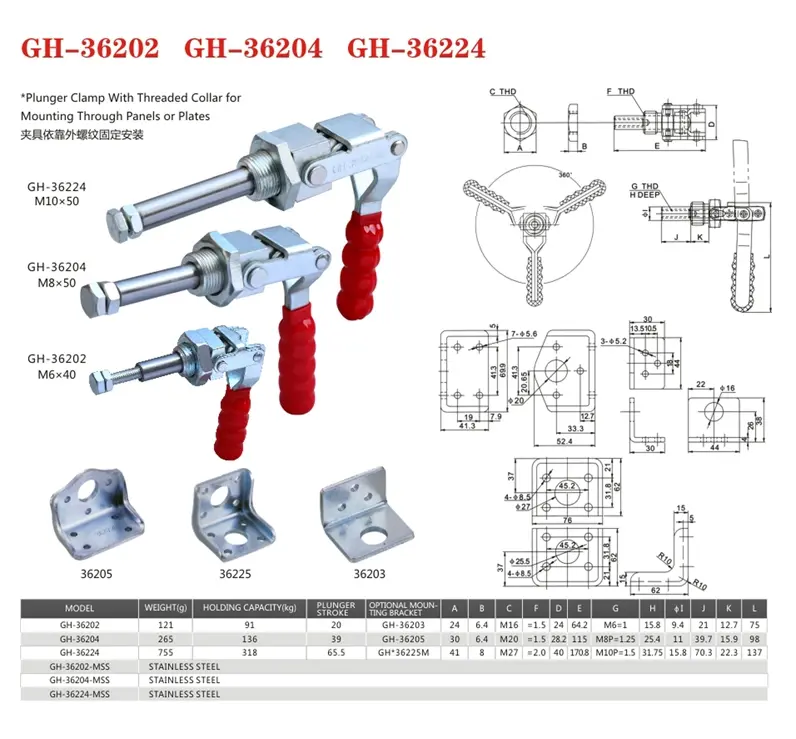

This series comes in 3 sizes: large, medium, and small. The model number for the large size is 36224, the medium size is the current model 36204, and the small size is 36202.

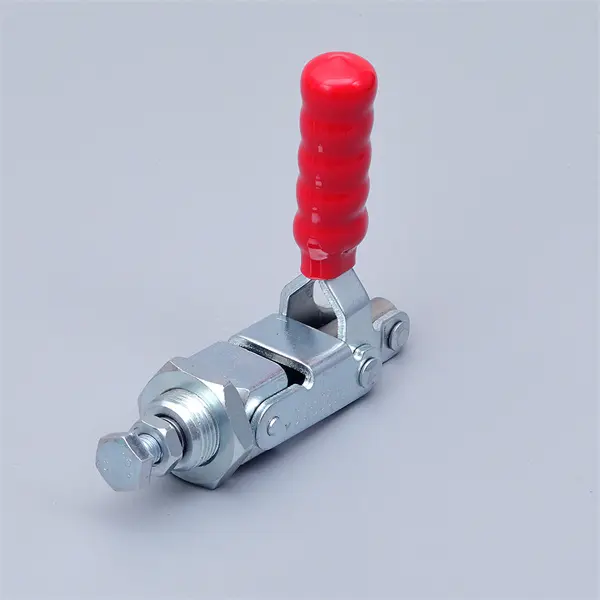

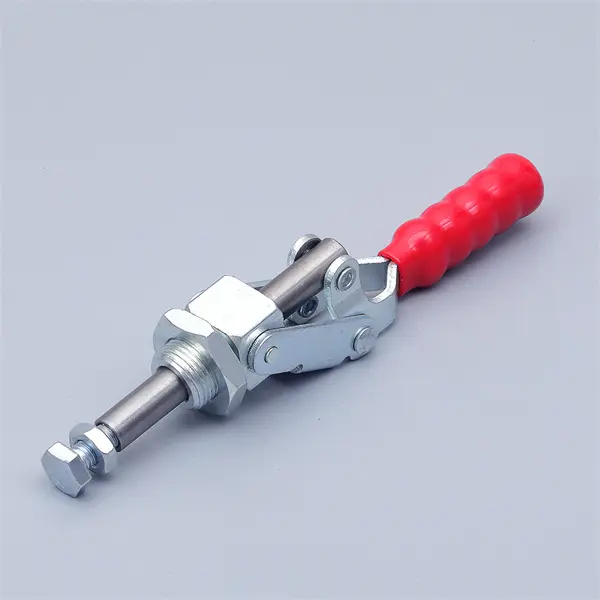

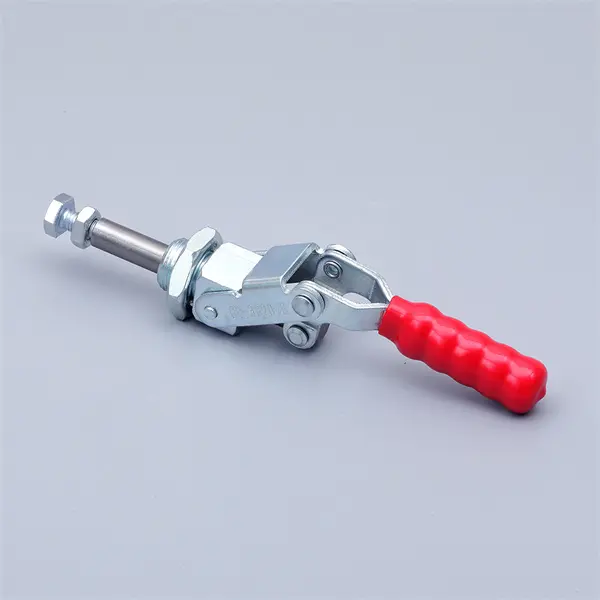

This type is a universal push-pull manual quick fixture clamp used for operating workpieces flat or vertical, without the need for installation. It features a plunger clamp with a threaded collar for mounting through panels or plates. This clamp weighs 265 grams, has a holding capacity of 136 kilograms, a plunger stroke of 39mm, and is suitable for industries such as woodworking, mold making, vehicle manufacturing, and more.

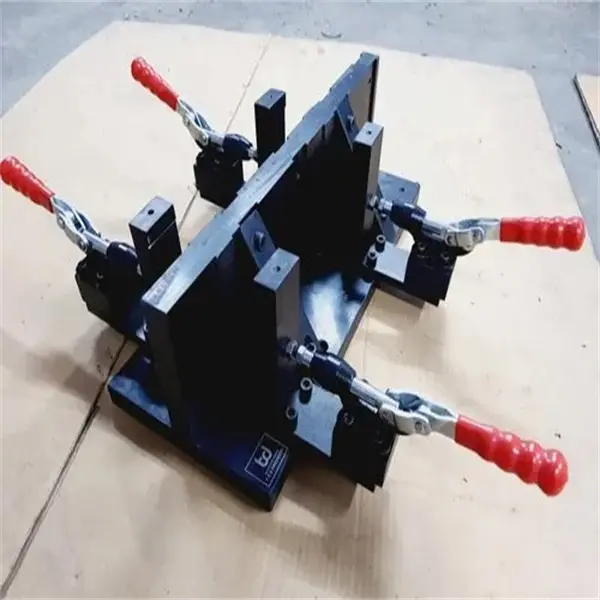

Push-pull type toggle clamps are designed to offer flexibility and ease of use in a variety of applications. One of the key features of these clamps is their versatility in mounting options. These clamps can be conveniently mounted on a mounting bracket, such as Type ASW, providing a sturdy and reliable attachment point that ensures stability during operation.

Moreover, for added convenience and adaptability, push-pull toggle clamps can also be directly mounted on the jig itself using the threaded body with a hex nut. This direct mounting option eliminates the need for additional brackets or accessories, streamlining the setup process and saving valuable time and effort.

By offering both mounting options, push-pull toggle clamps cater to different user preferences and specific application requirements. Whether mounted on a bracket or directly on the jig, these clamps provide a secure grip and reliable performance, making them ideal for a wide range of tasks in woodworking, metalworking, manufacturing, and other industries.
